Tamiya RC 1/16 M4A3(105) HVSS Sherman 105mm Howitzer Kit

Buy Tamiya RC 1/16 M4A3(105) HVSS Sherman 105mm Howitzer Kit Online

The M4A3(105) HVSS Sherman 105mm Howitzer Kit is just one of a great range of RC Tanks that are available from us both in store and online.

The 1/16 R/C M4 Sherman 105mm Howitzer was Tamiya’s first R/C model kit released in 1974. Now, we are delighted to announce the updated version of Item 56014 – 1/16 R/C M4 Sherman 105mm Howitzer with a new gearbox which uses one Type 540 motor (two Type 380 motors in the original kit) which recreates the controlled differential steering system of the actual tank. Generally speaking, tanks used the clutch-brake steering system – the power is disconnected from the side of turning direction with sprocket brakes and the tank turns by making differential rotations between right and left tracks. On the other hand, the M4 Sherman employed the controlled differential steering system which allows smooth turning by changing rotation speeds of right and left tracks with differential gear without disconnecting the power. While sprocket brake still works, the brake completely stops during turnings, and this system limits drive loss and brake overheating. During WWII, most American tanks featured this steering system. Enjoy the feeling of using the steering system from the actual tank, on our legendary R/C tank.

About The Model

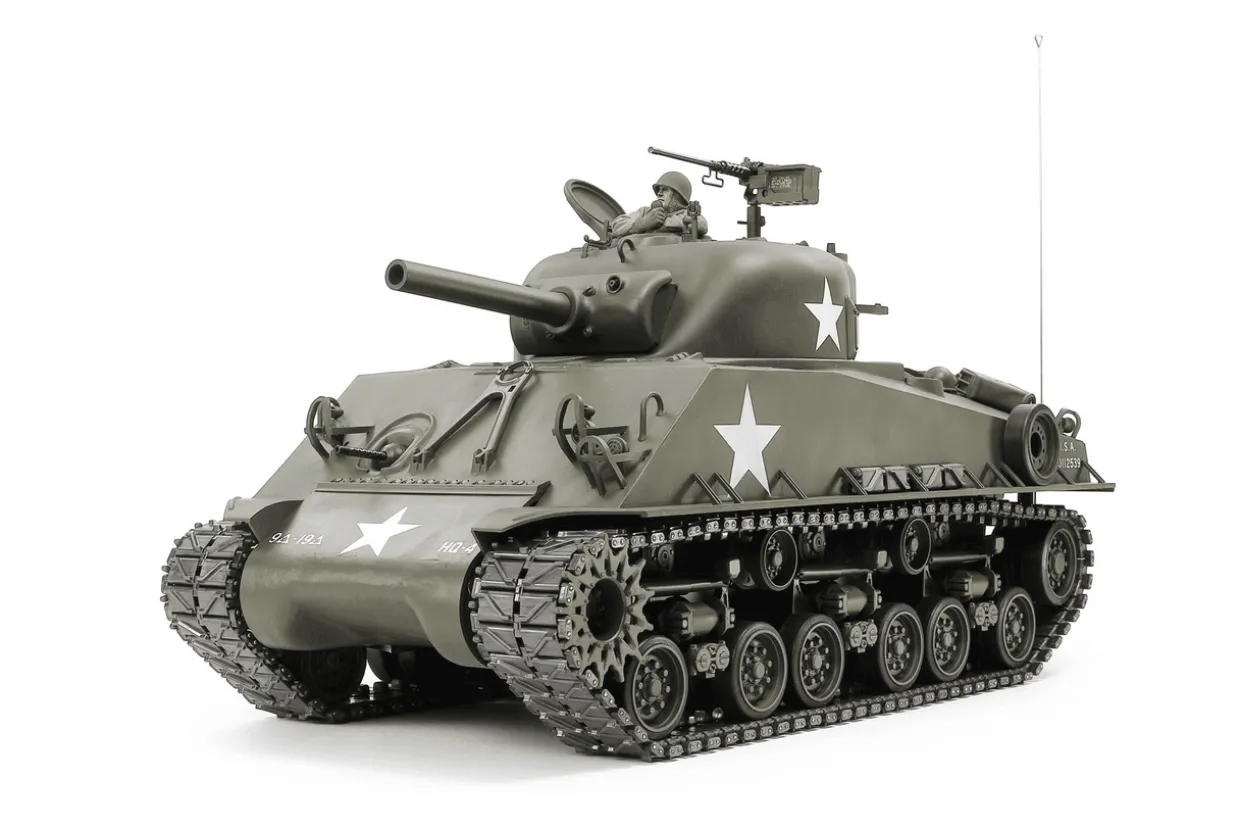

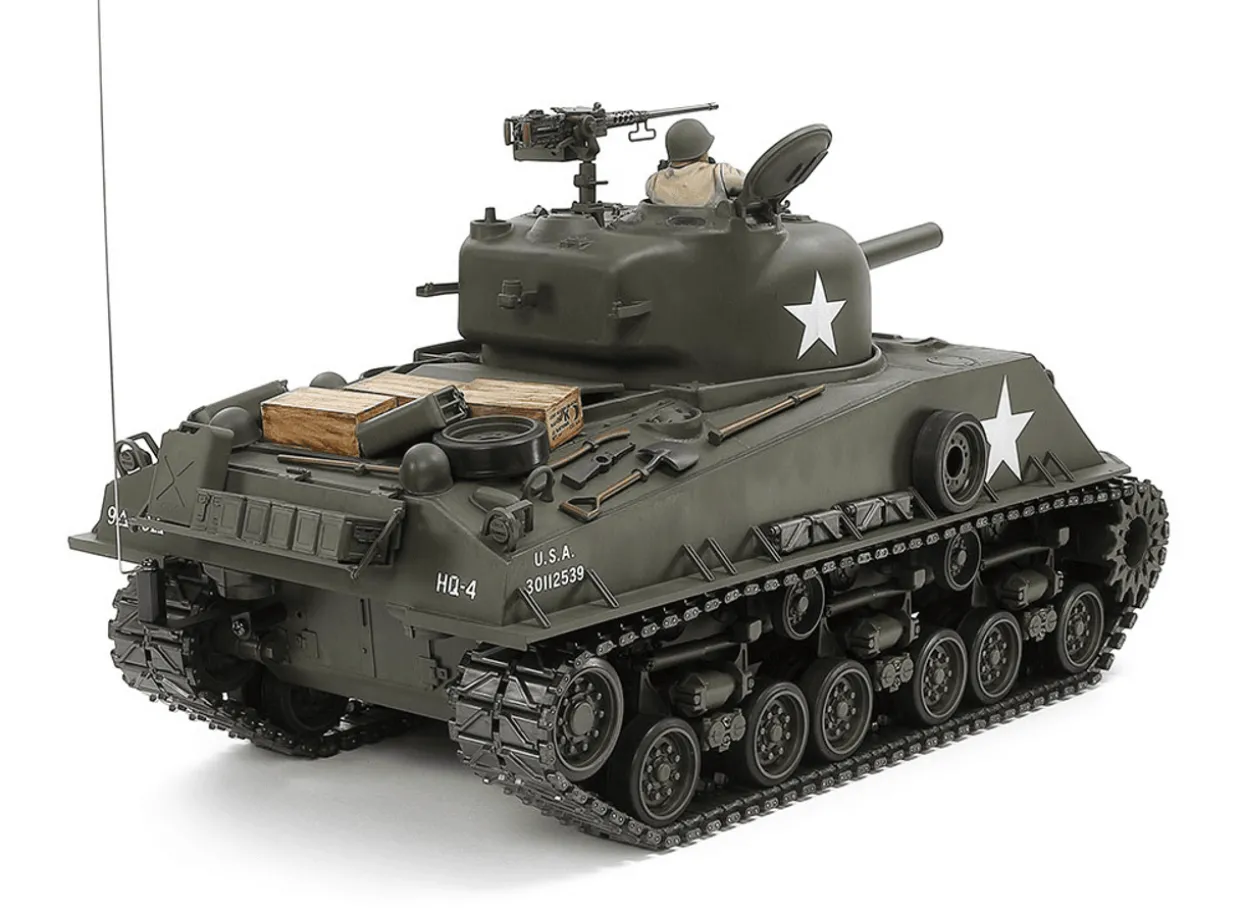

• This is a 1/16 scale R/C model assembly kit. Length: 376mm, width: 183mm, height: 205mm.

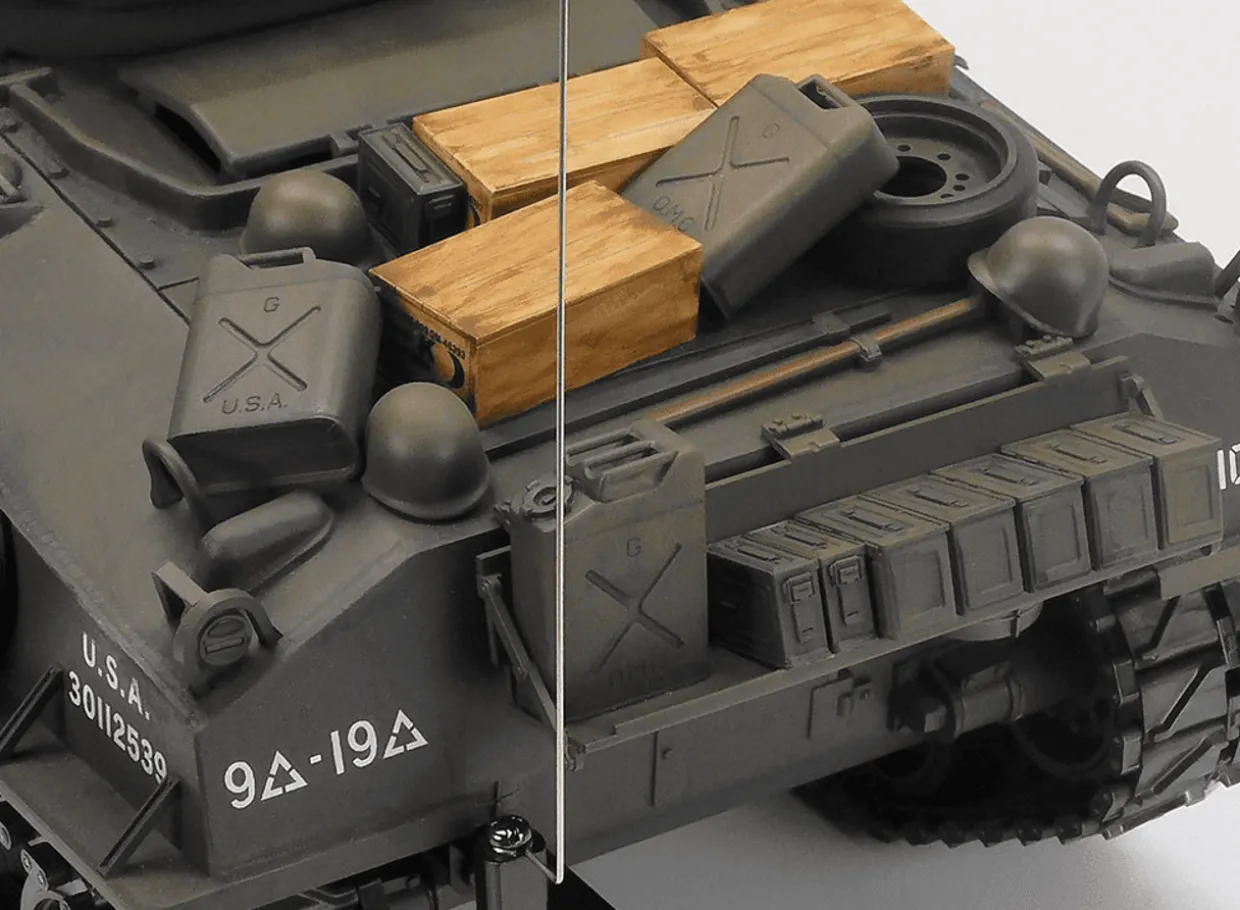

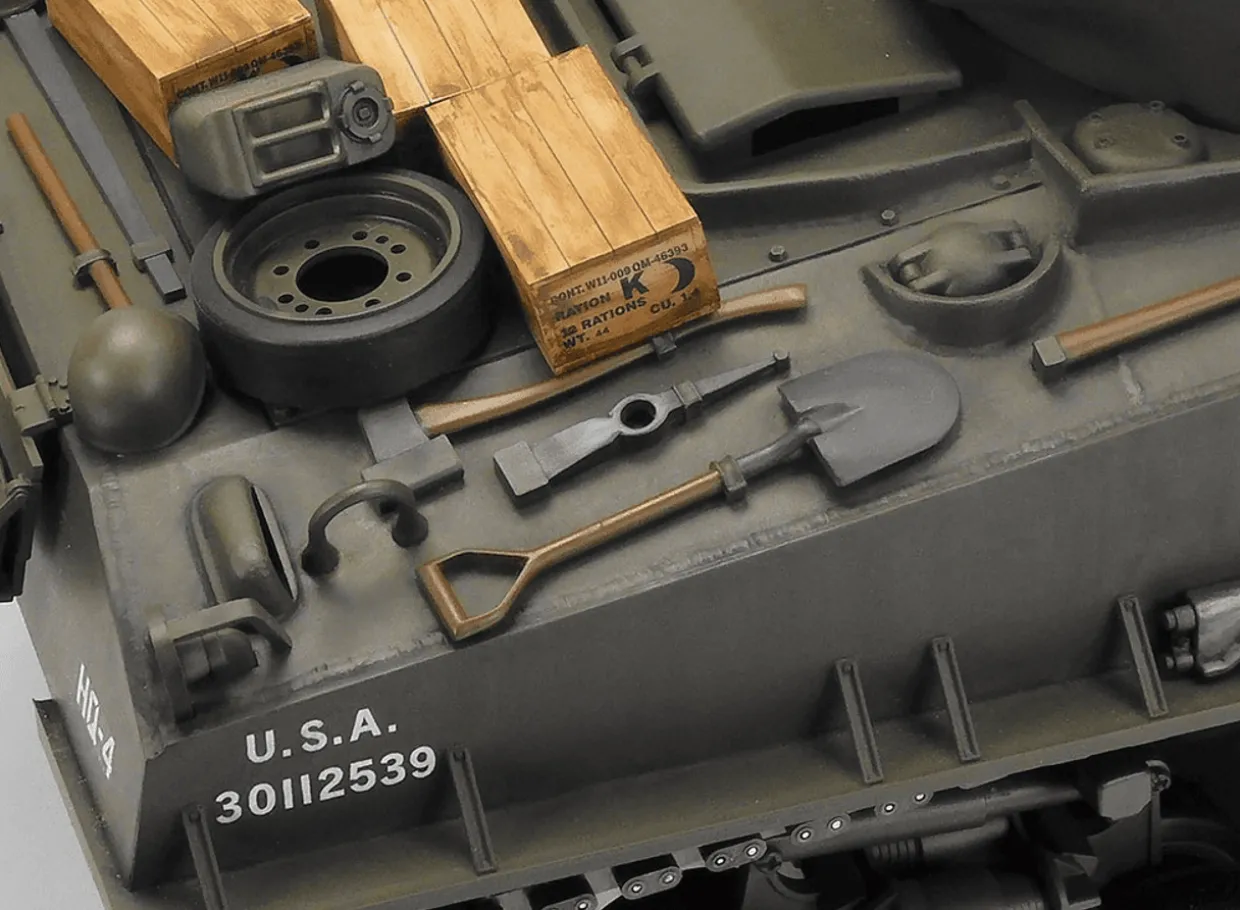

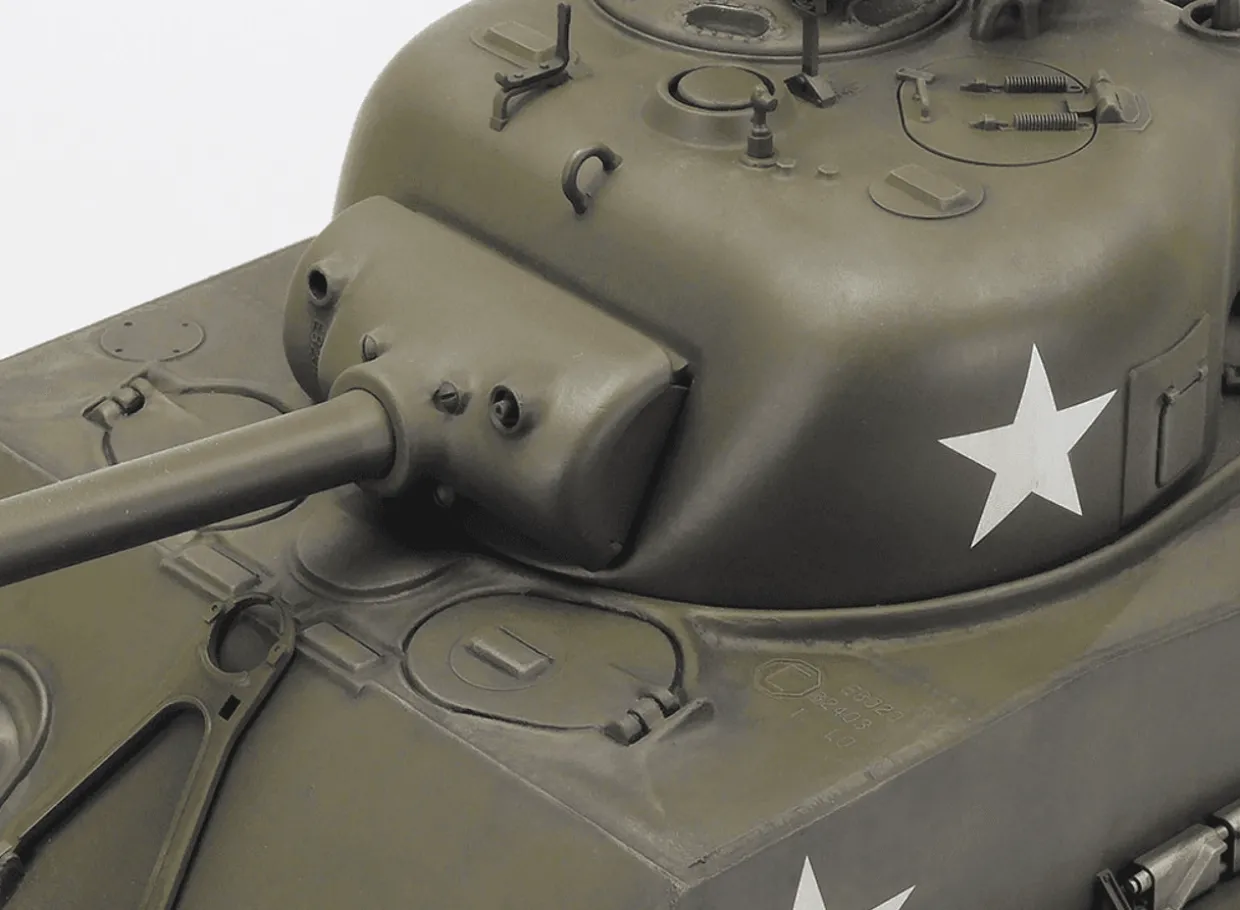

• The form of the M4 Sherman is authentically captured in style. (The exterior parts are from Item 56014.)
• Updated gearbox recreates a controlled differential steering system.
• Metal components are used for drive sprockets, suspension arms and idler wheel bases.

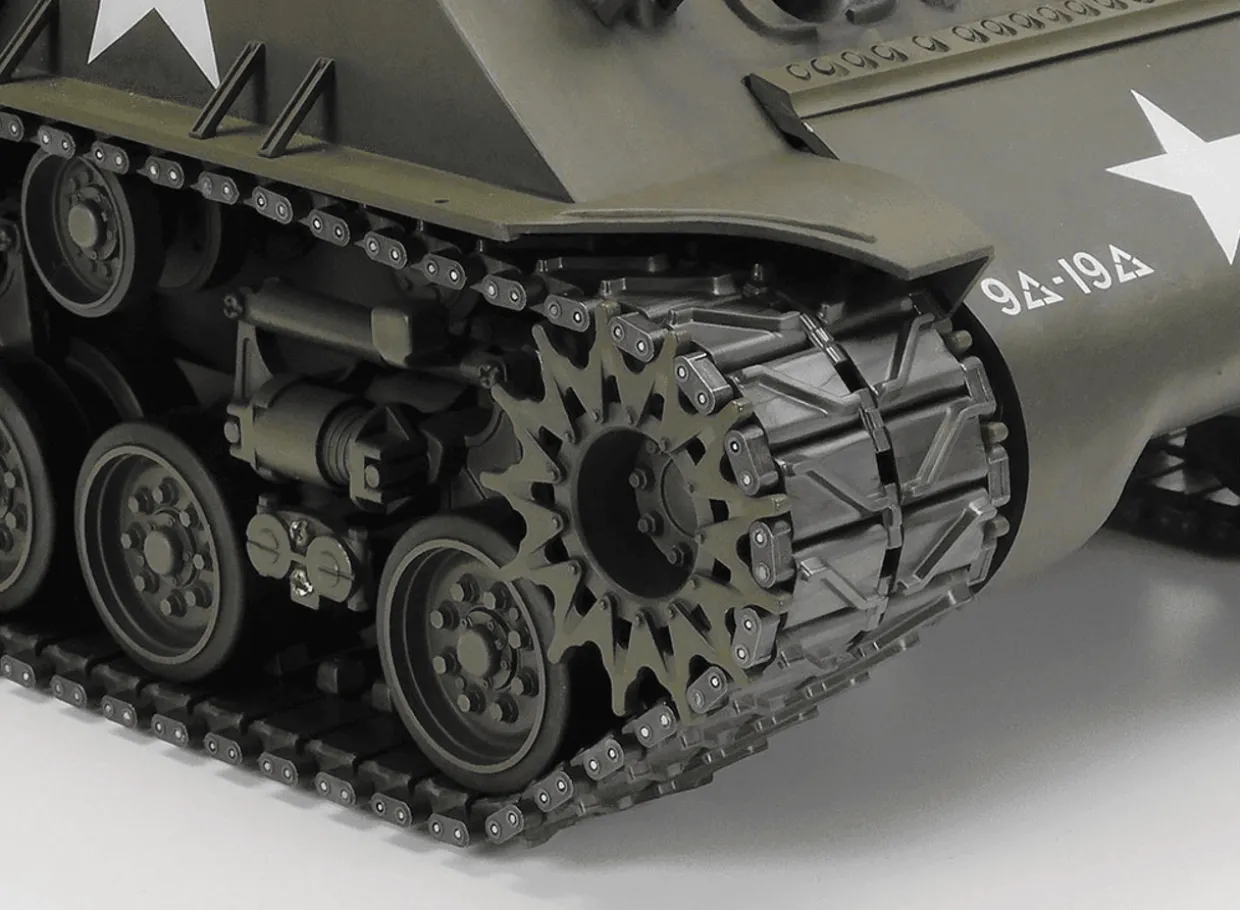

• The horizontal vertical spring suspension (HVSS) uses metal coil springs.
• One Type 540 motor is included.
• Features full ball bearings.
• Pre-assembled tracks use metal pins and connectors.

Controlled Differential Steering System

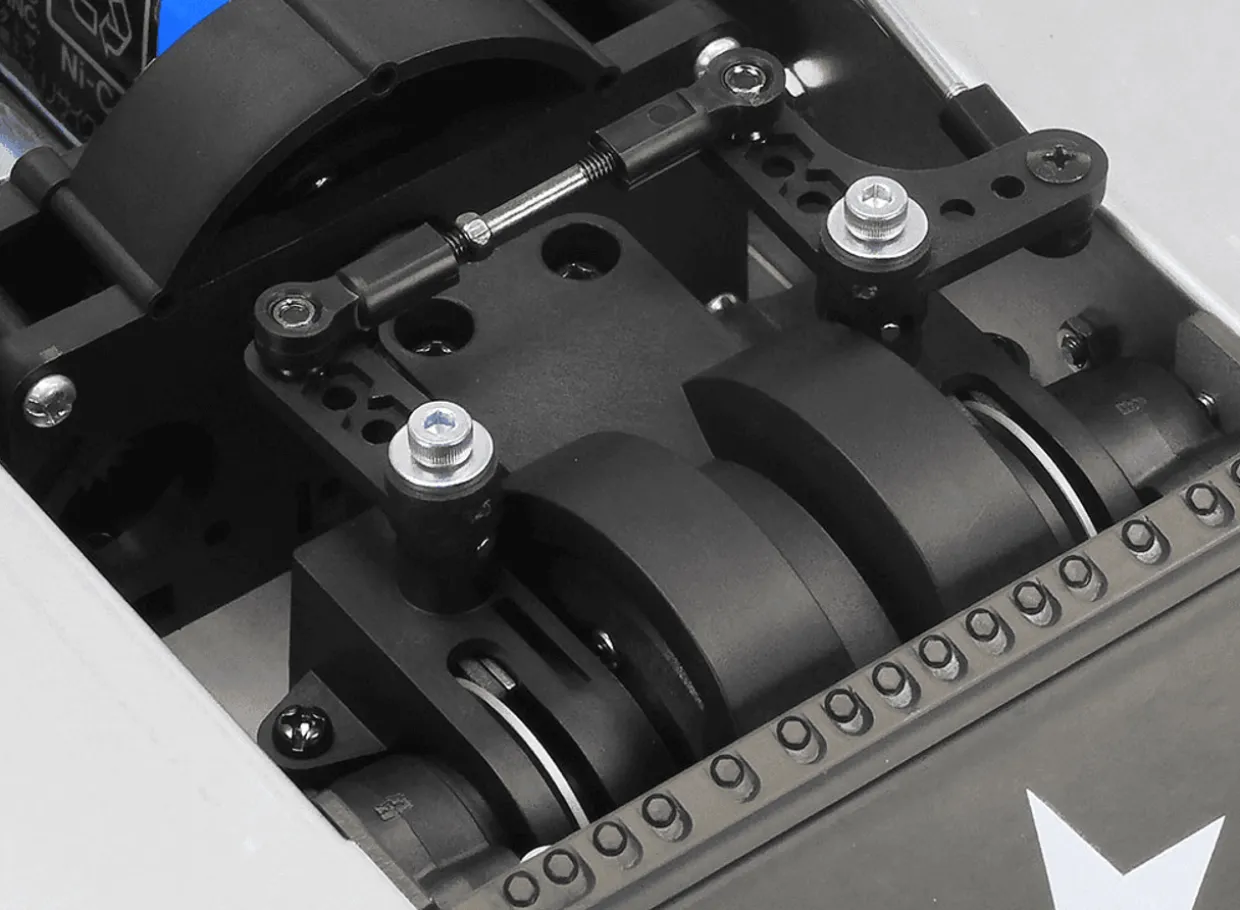

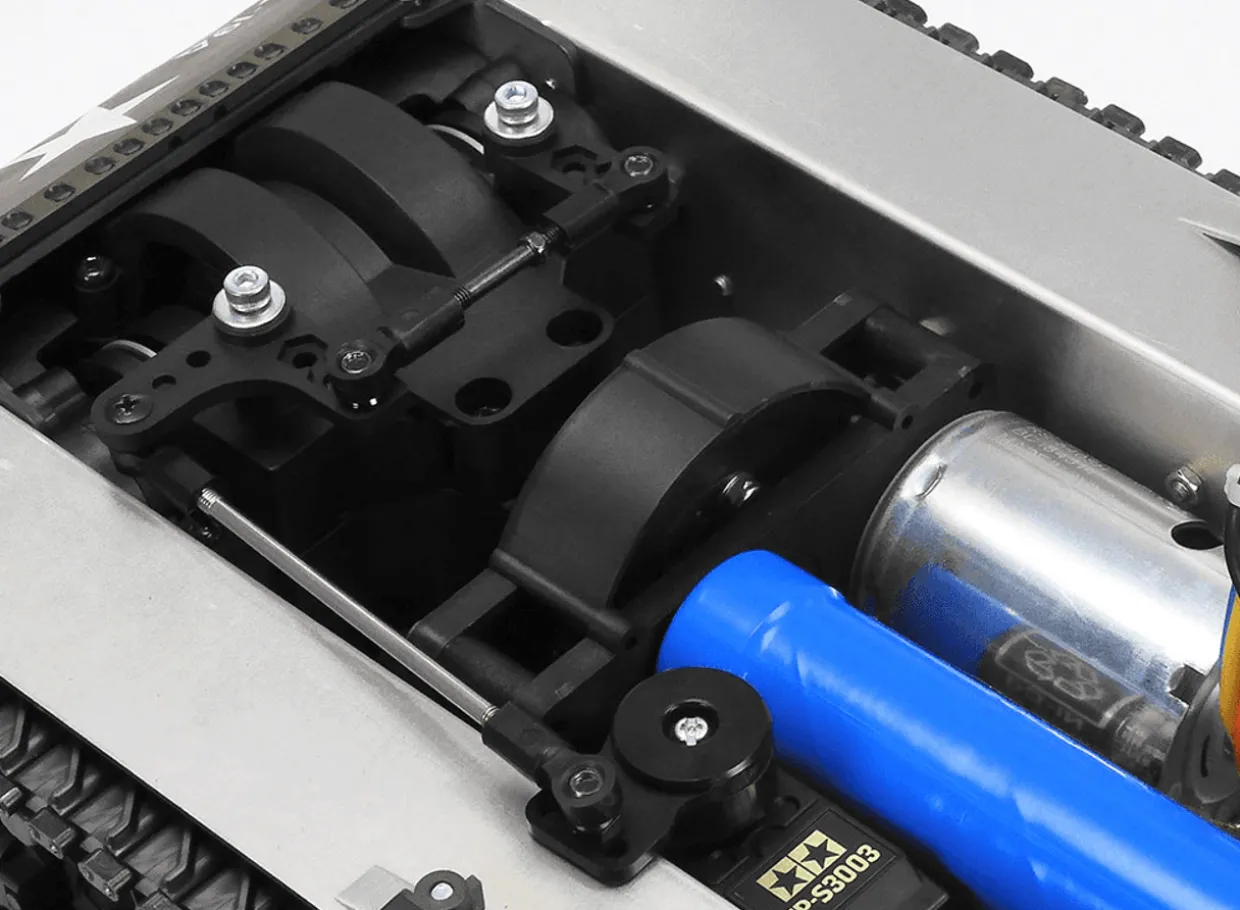

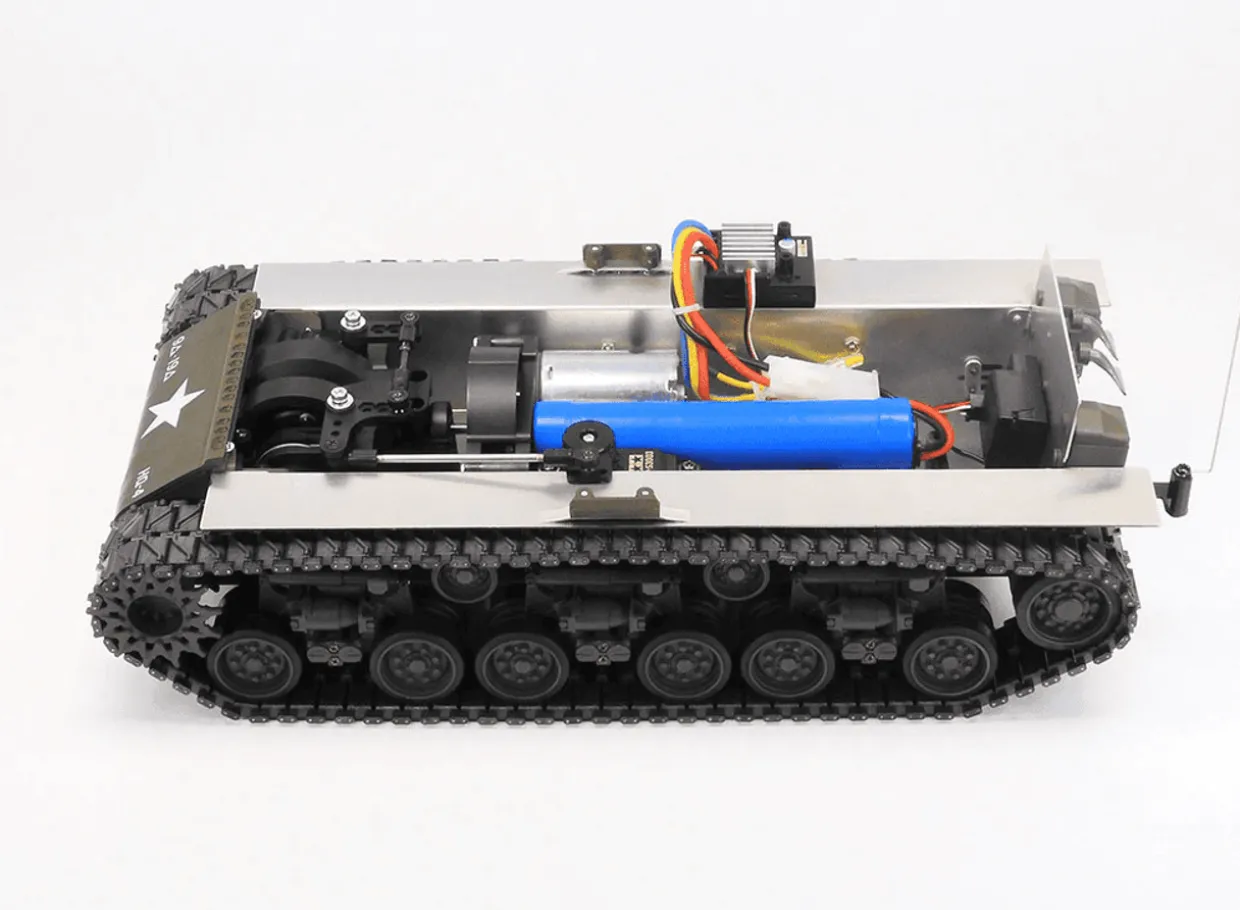

A differential gear transfers power from the centre-right type 540 motor. This controlled differential steering system features a brake disc on either side of the differential gear, which distributes power to the left and right drive sprockets: transmitter commands cause steering servo movement which in turn slows the turning side track and speeds the other track up, with the resulting difference in speeds causing the tank to turn. This system was mainly used on American tanks during WWII.

Running Performance

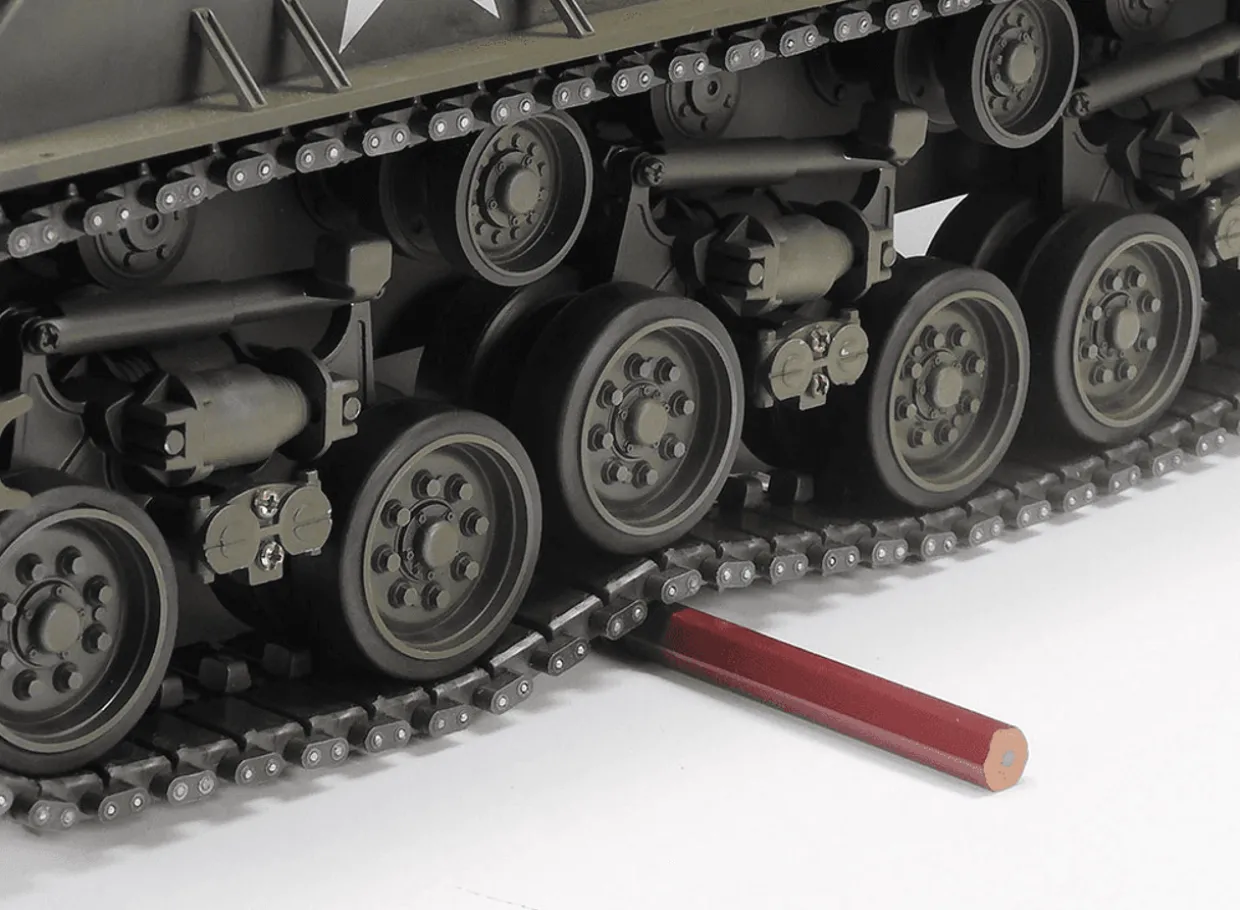

Turning circle is controlled via the steering servo and brakes. Speed control and steering operation are independent, so this tank can be controlled by a wheel-trigger type 2-channel transmitter in the same way as an R/C car is. The horizontal vertical spring suspension (HVSS) uses metal coil springs for smooth motion and ensures powerful drive, even on rough surfaces. Pre-assembled plastic tracks use metal pins and connectors.

Required to Radio Control the 1/16 RC Leopard Full Option

• 4 Channel Radio Control System (Not Included)
• 7.2 V Nicad Battery (Not Included)
• Mains 7.2 Volt Charger (Not Included)

We have packaged the radio control system, batteries and charger together for an easy additional purchase.

• RC Tank Package Deal

Manufacturer: Tamiya
Model: 56048 M4A3(105) HVSS Sherman 105mm Howitzer Kit
Scale: 1/16
