Tamiya RC Fighter NXGEN Buggy (DT-04) Kit

Buy Tamiya RC Fighter NXGEN Buggy (DT-04) Kit Online

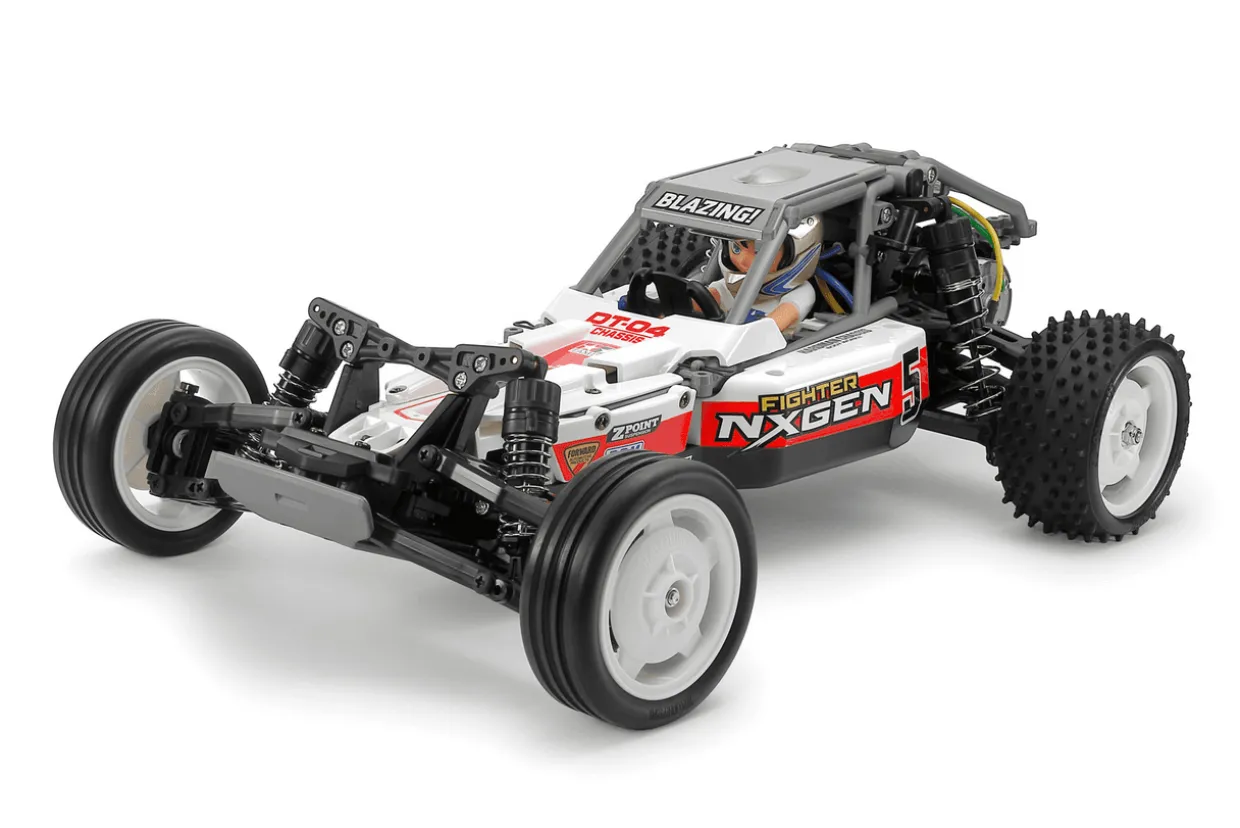

The Tamiya Fighter NXGEN Buggy (DT-04) from our great range of radio controlled buggies is inspired by full-size single-seater racing buggies popular in America.

The new DT-04 – a 2WD rear wheel drive buggy chassis – of course offers ease of assembly and lively performance, which is a characteristic of this series. This product name “NXGEN” is based upon the English word “Next Generation” and as you can guess from the name, it gives improved off-road performance and a wealth of setups. Also, front and rear suspension arms, gears and gearbox are from DT-02 and DT-03 chassis cars, and option parts from DT-02 and DT-03 chassis can be used for this chassis. The body will also be an interesting part to see!!

About the Model

• This is a 1/10 scale R/C model assembly kit. Length: 395mm (with 265mm wheelbase) / 404mm (with 280mm wheelbase), height: 120mm, width: 248mm.

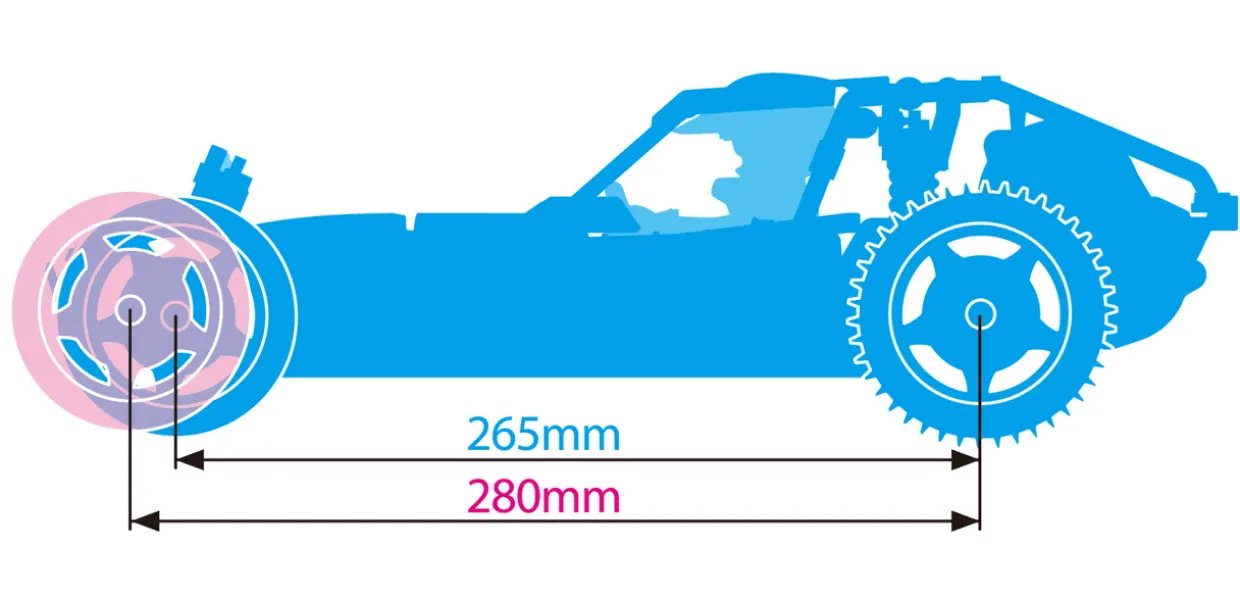

• Two wheelbases can be selected: 265mm for emphasis on handling or 280mm for emphasis on stability. Reassemble the front section (arms, etc.) to switch between two different wheelbases.
• The distinctive body features multiple body panels connected to pipe frames, a design inspired by full size racing buggies.
• Its 2WD rear-wheel drive chassis has a lightweight, durable bathtub frame which is newly designed.

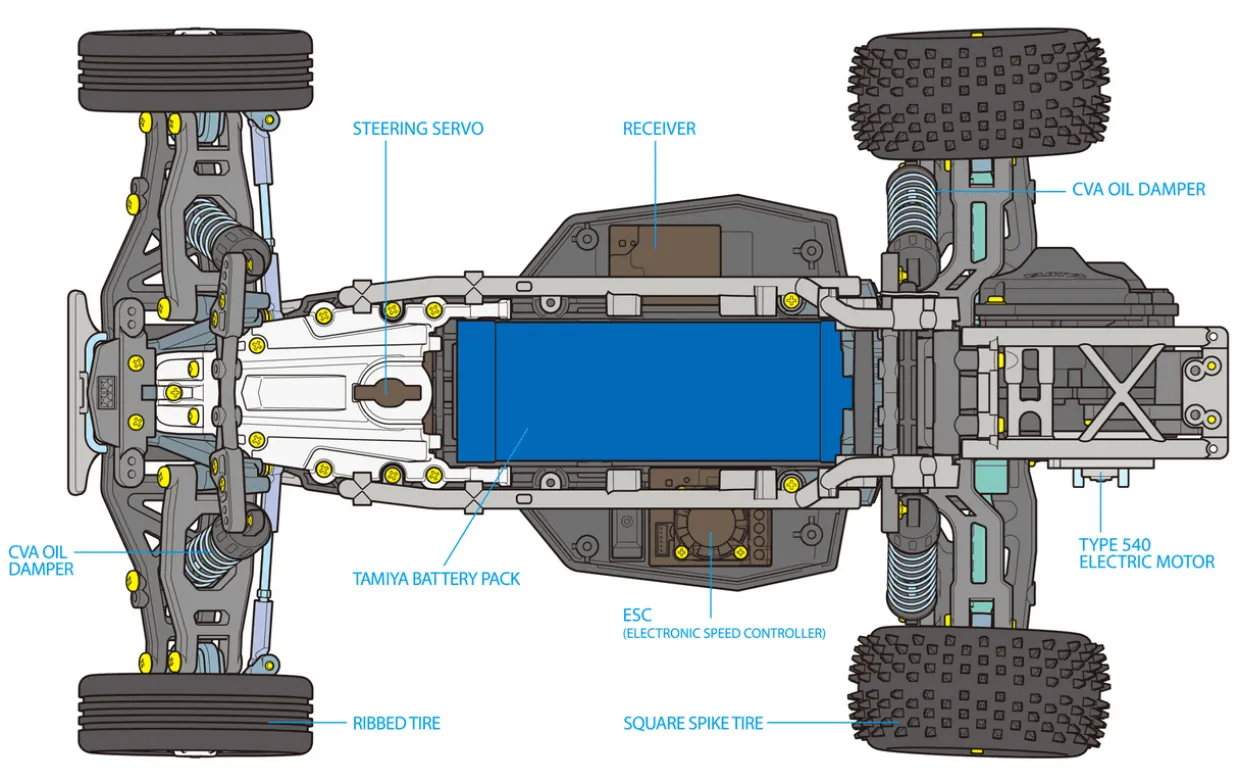

• The chassis has an inline battery pack position, and a rear-mounted motor to give the rear wheels plenty of traction.
• The sealed gearbox has a built-in gear differential for smooth cornering and helps keep out dust and dirt.
• Side pontoons have the ESC in the left and the receiver in the right.
• The 4-wheel independent double wishbone suspension with long arms employs CVA oil dampers.

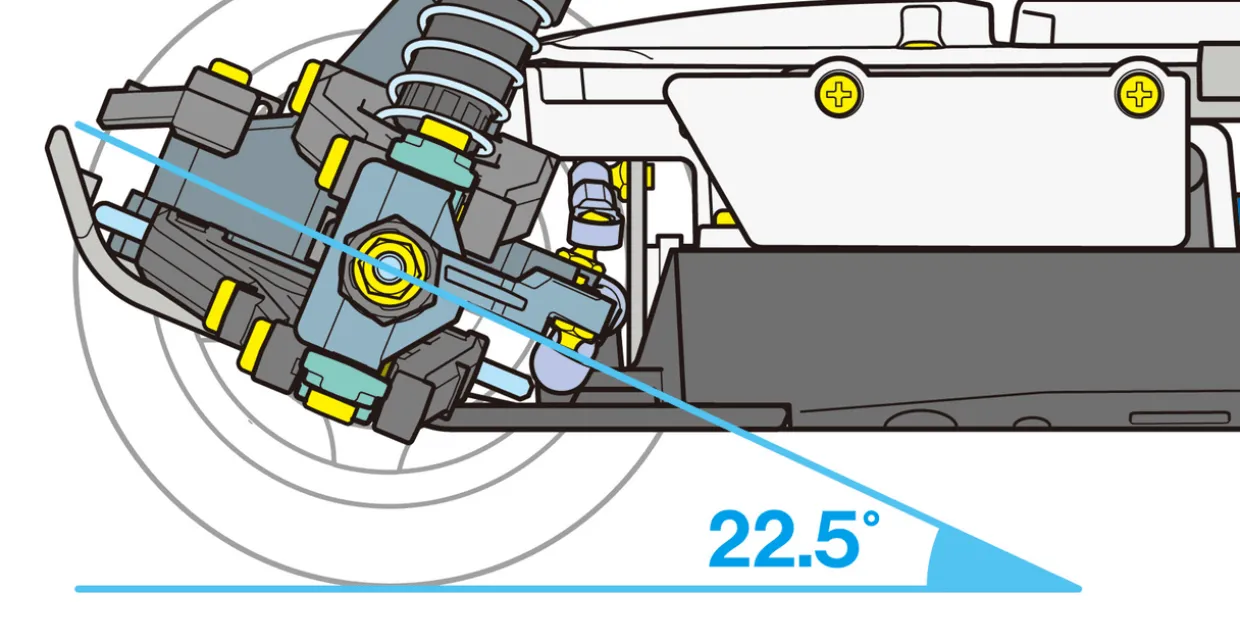

• Front suspension arms have a skid angle of 22.5 degrees for superlative off-road handling and performance.
• The 3-piece steering tie-rod gives true steering. (It is the first time to employ 3-piece steering tie-rod in this series.)

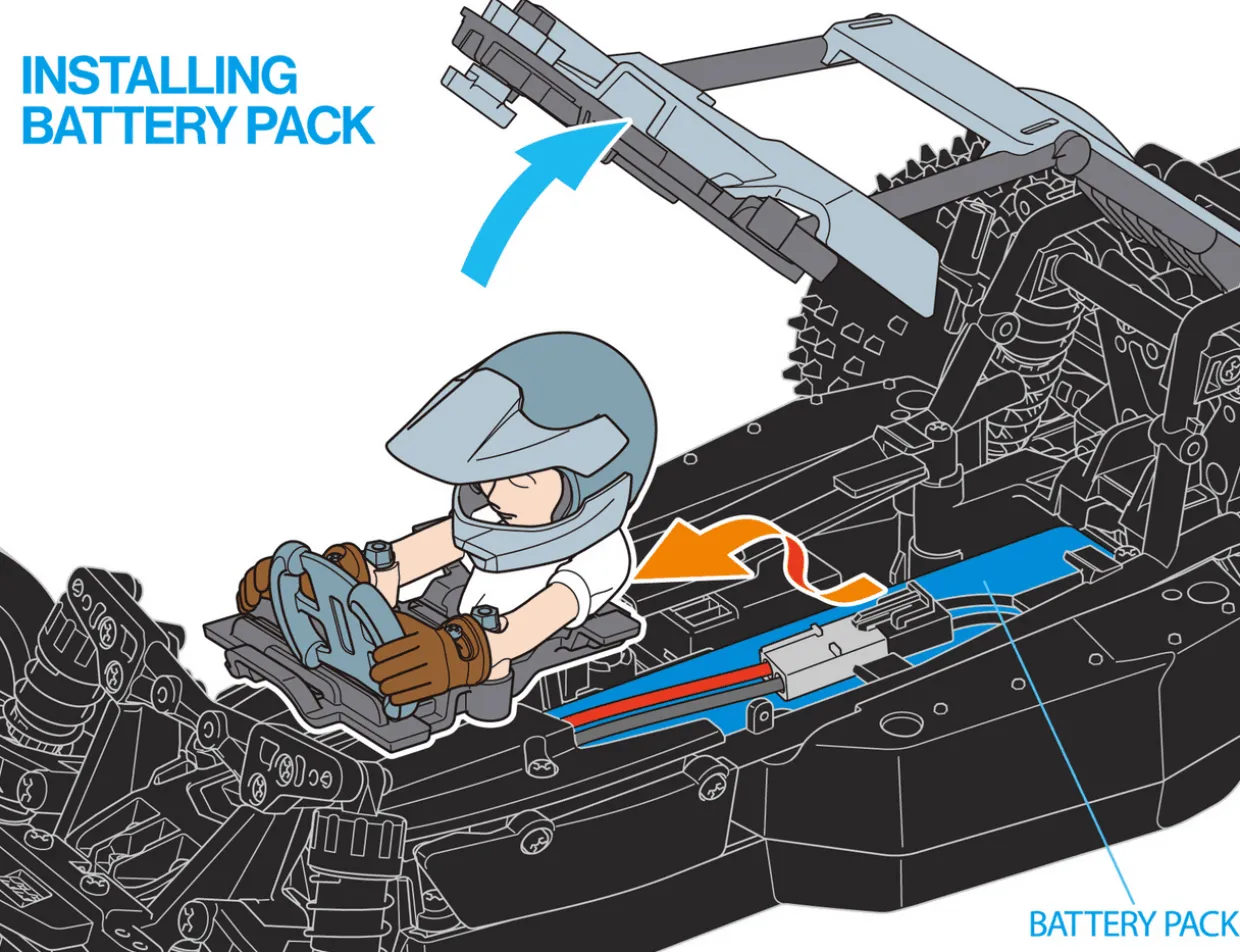

• Access the battery pack from the car top. Turn the hood lever and remove the side pins then lift up the roof. After that, slide the driver figure forward to access the battery.
• Ribbed tires are on the front, and grippy square spike tires on the rear.
• Hex hubs on the front allow attachment of different wheels.
• Rear damper attachment positions and rear upper arms can be changed.

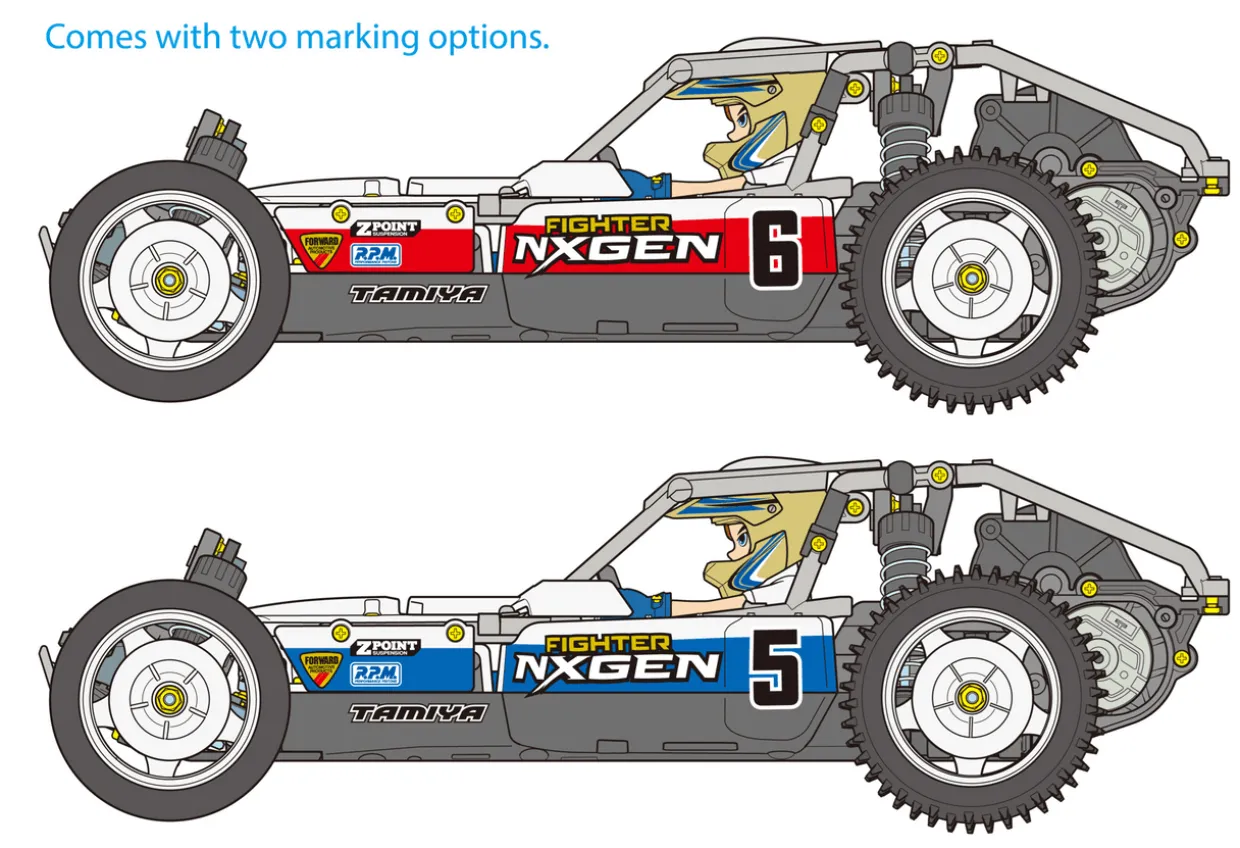

• Comes with two marking options and one driver figure.
• Use Tamiya Colour paints (sold separately) to paint the driver figure.
• Many separately sold DT-02/DT-03 parts are compatible, with a wealth of options for fine-tuning setup

We have packaged the radio control system, battery and charger together for an easy additional purchase.

• Starter Package Deal (Includes Slow Charger)
• Racing Package Deal (Includes Fast Charger)

THIS KIT REQUIRES:

• Radio: 2-Channel with servo(s)
• Battery: 6-cell flat with standard Tamiya connector
• Charger: AC/DC timed or peak for 6-cell battery

Manufacturer: Tamiya
Model: 58741 R/C Fighter NXGEN Buggy (DT-04) Model Kit
Scale: 1/10
