Tamiya RC M-07R Chassis Kit

Buy Tamiya RC M-07R Chassis Kit Online

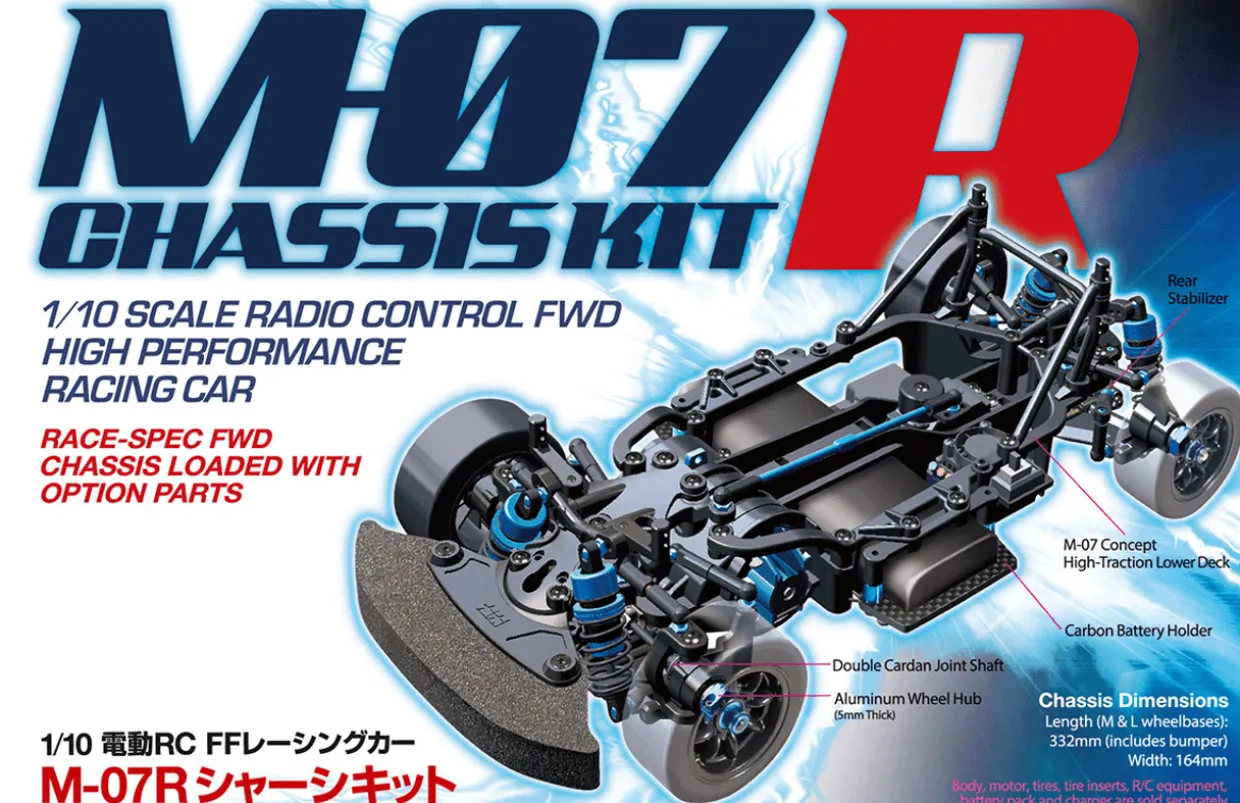

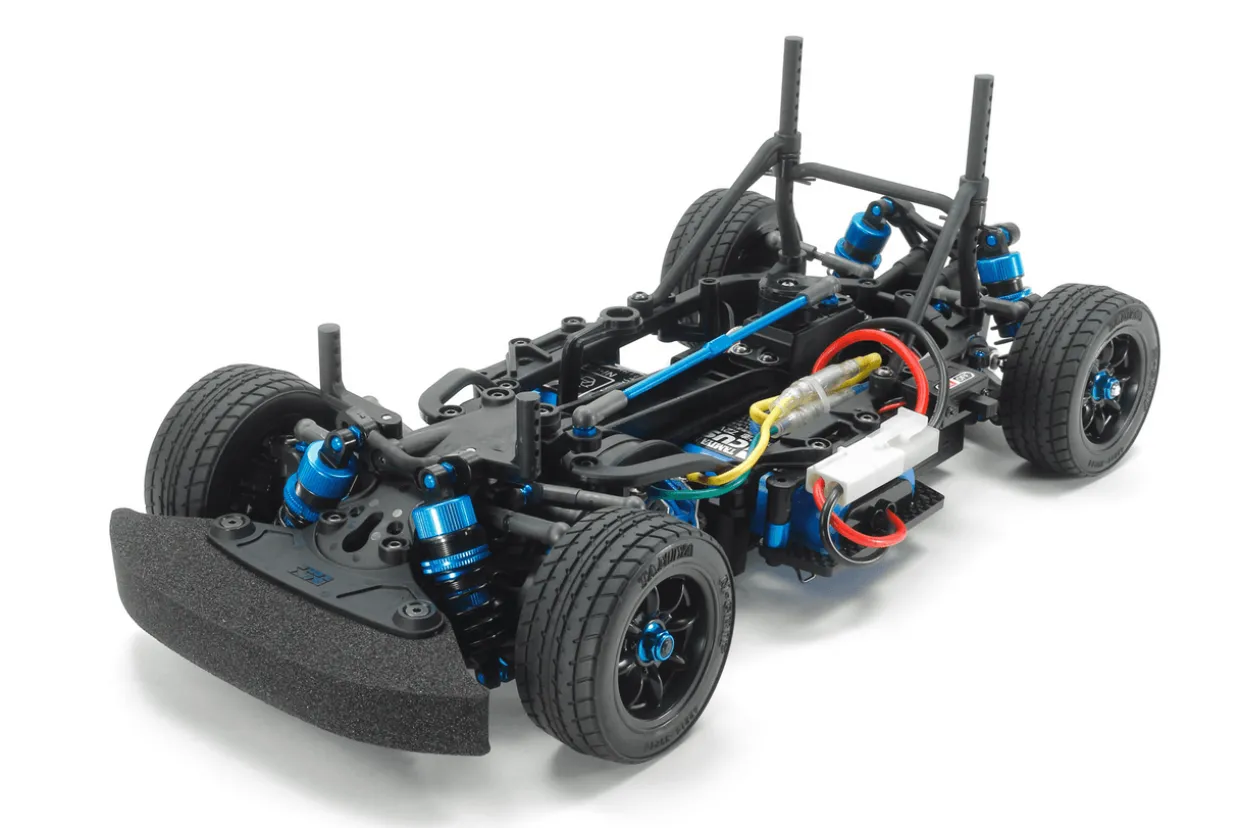

The M-07R Chassis Kit from our great range of radio controlled cars – This R/C FWD chassis assembly kit takes the cutting-edge M-07 Concept chassis and pairs it with a range of Tamiya Racing Factory (TRF) hand-picked option parts for a racing setup. It features a high-traction lower deck for a ground-hugging drive, plus carbon fibre battery holders, TRF special dampers, reinforced suspension arms and uprights, as well as rear stabilizer. The result is super grip, even on low-traction surfaces. An efficient drivetrain includes oil-filled gear differentials, full ball bearings, double cardan drive shafts, aluminium cup joints, hard-coated aluminium pinion gear and more.

Featured Components

• Carbon fibre battery holder (dedicated component)
• Rear stabilizer
• TRF special dampers (hard black coating)
• Double-cardan drive shafts (33mm)
• High-traction lower deck
• Reinforced C parts (uprights)
• Reinforced D parts (suspension arms)
• 3x106mm aluminium turnbuckle shafts
• Aluminium joint cups
• Clamp-type aluminium wheel hubs (5mm)
• 2.6mm diameter titanium-coated shafts
• 46mm titanium-coated shafts
• 06 module aluminium pinion gear (20T)
• Full ball bearings
• Hi-torque servo saver (black)

Specifications

• 1/10 Scale
• Length: 332mm (including bumper)
• Width: 164mm
• Wheelbase: 225mm or 239mm (Selectable)
• Monocoque Frame
• Front-Midship Motor, Front-Wheel Drive
• Oil-Filled Gear Differential
• 3-Piece Steering Tie-Rod
• 4-Wheel Independent Double Wishbone Suspension
• TRF Special Dampers
• Gear Ratio = 5.78:1 using included 20T pinion gear (7.22:1 – 4.81:1 available with separately sold pinion gears)

We have packaged the radio control system, battery and charger together for an easy additional purchase.

• Starter Package Deal (Includes Slow Charger)
• Racing Package Deal (Includes Fast Charger)

Electric RC Chassis Kits Require:

• Compatible Body Shell
• Radio: 2-Channel with servo(s)
• Electronic Speed Controller
• Battery: 6-cell flat with standard Tamiya connector
• Charger: AC/DC timed or peak for 6-cell battery
• Paint: Tamiya PS spray paints

Manufacturer: Tamiya
Model: 47520 R/C M-07R Chassis Kit
Scale: 1/10
