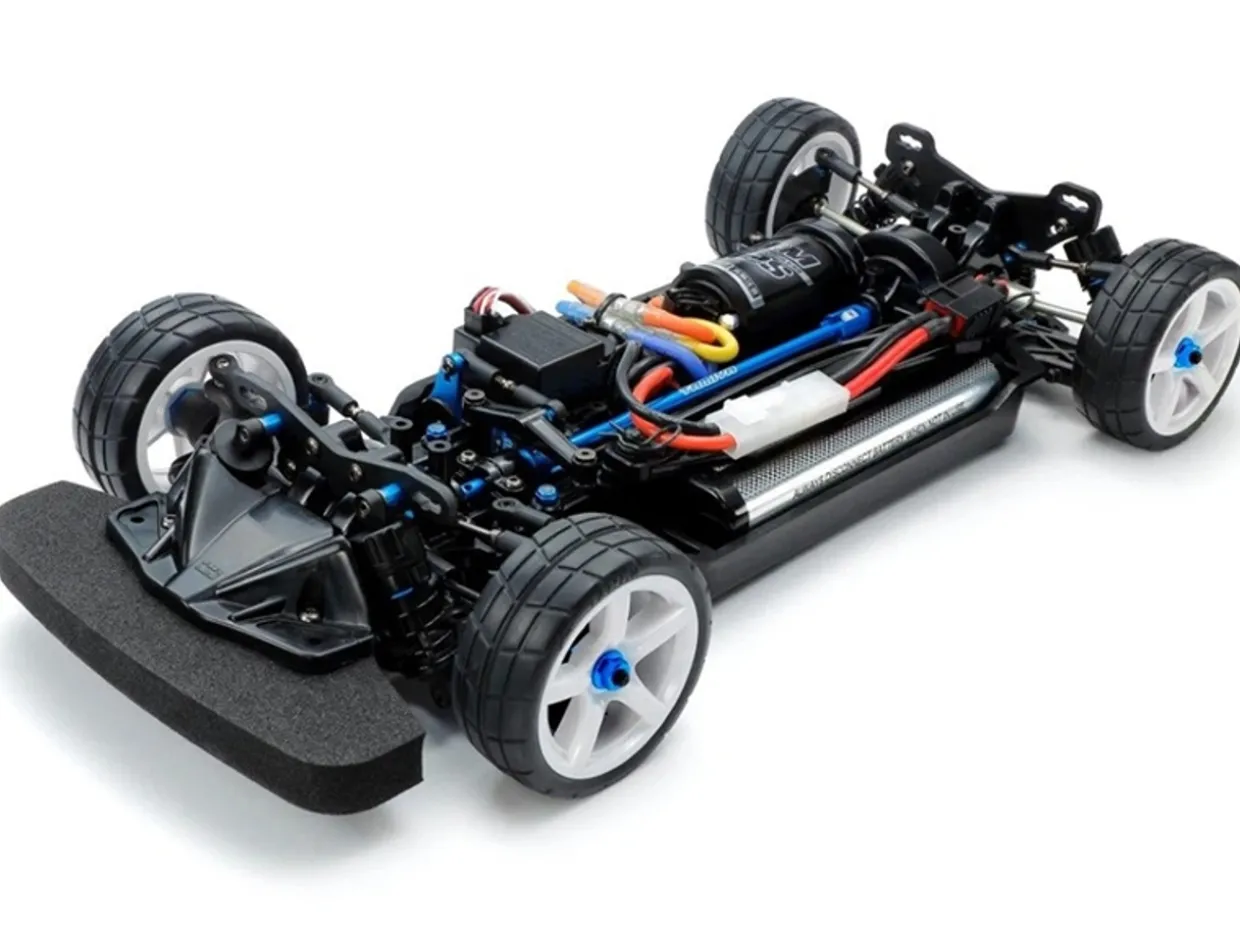

Tamiya RC TT-02 Type SRX Chassis Kit – TT02SRX

The Tamiya TT02 Type S Chassis TT02S from our great range of radio controlled cars, is an upgraded version of the TT-02 Type-S Series with enhanced durability and performance for racing. This chassis kit uses Items 22049 and 22047 with updated parts. Also, parts included in this chassis kit are chosen (more cost-effective than buying each part) for users who want to learn setup before levelling up to middle class chassis.

Features

• This is a 1/10 scale R/C chassis assembly kit.
• Items 22049 (*1) and 22047 (*2) ensure ease of assembly and stable drivability.
• *1: Diff. joint cups are lightweight aluminum, and give a weight reduction of 7.8g compared to Item 22049?s standard ones.
• *2: Direct cups are designed for this chassis kit for improved durability.
• This chassis kit features reliable 4-wheel independent double wishbone suspension from Item 42345 (1/10 R/C TRF420 Chassis Kit) for effective setup.
• Newly shaped propeller joints are compatible with swing shaft protectors, and these parts have plastic parts at joint sections of stainless pins and aluminum joints to limit wear of parts.
• Uses Item 22054 which allows stable steering and cornering for superior performance at races.
• Rear drive shafts are 39mm size which are specific for this chassis. These also have a hard coat to enhance durability and lubricity.
• High speed gears and 27T pinion gears (gear ratio: 6.55: 1) are included as the kit-standard parts.
• TT-02 hi-torque servo saver gives steering angle to limit damage of steering and servo.
• Features full ball bearings.
• Comes with a carrying case dedicated for the TT-02 Type-SRX chassis.

Hop-Up Parts Included:

• 22054 37mm Drive Shafts for Double Cardan Joint Shafts (2pcs.)
• 22049 XV-02/TT-02 Oil Gear Differential Unit
• 22047 XV-02/TT-02 Front Direct Coupling Set (39T)
• 54981 06 Module Hard Coated Aluminum Pinion Gear (27T)
• 54886 TRF419 Suspension Upgrade Set
• 54799 TT-02 Hi-Torque Servo Saver Set (w/Aluminum Horn)
• 54501 TT-02 Aluminum Propeller Shaft
• 54500 TT-02 High Speed Gear Set (68T)
• 53823 Clamp Type Aluminum Wheel Hub (5mm Thick)
• 53576 TRF Damper Oil Seal (4pcs.)
• 42357 Cross Joints for Low Friction Assembly Universal Shafts
• 42323 Short Ball Connector Nuts for TRF Dampers (8pcs.)
• 42143 4mm Aluminum Serrated Wheel Nut (4pcs./Blue))

Wide Variety of Option Parts are separately available.

We have packaged the radio control system, battery and charger together for an easy additional purchase.

• Starter Package Deal (Includes Slow Charger)
• Racing Package Deal (Includes Fast Charger)

ELECTRIC KITS REQUIRE:

• Radio: 2-Channel with servo(s)
• Electronic Speed Controller
• Battery: 6-cell flat with standard Tamiya connector
• Charger: AC/DC timed or peak for 6-cell battery
• Paint: Tamiya PS spray paints

Manufacturer: Tamiya
Model: 58720 R/C TT-02 Type SRX Chassis Kit – TT02SRX
Scale: 1/10
