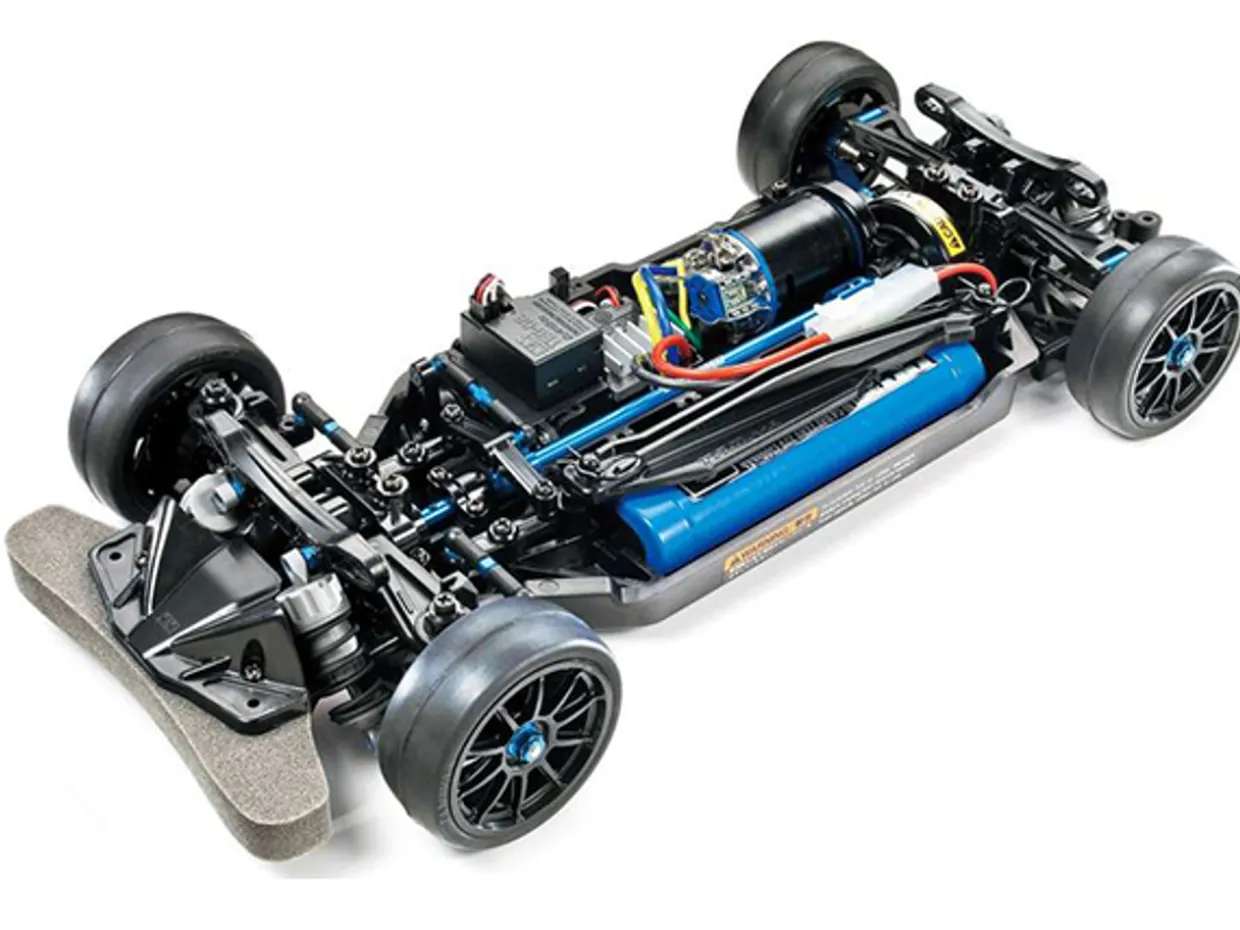

Tamiya RC TT-02R Chassis Kit

The Tamiya TT-02R Chassis Kit from our great range of radio controlled cars – This refined, race-spec version of the TT-02 chassis features a wide range of option parts and newly-designed components to make it ready to race! The included racing spec parts include upgraded uprights, motor mount, shafts, joint cups and more, while the suspension is fitted with metal parts and CVA oil dampers.

Features

• Length: 376mm, Width: 182mm
• Wheelbase: 257mm
• Tire Width/Diameter: 24/64mm (Front & Rear)
• Bathtub-type Frame
• Shaft-Driven 4WD
• Front/Rear 4-Bevel Resin Differentials
• 3-Piece Steering Tie-Rod
• 4-Wheel Double Wishbone Suspension
• Front/Rear CVA Oil Dampers
• Includes 68T and 64T spur gears. Combine with separately-sold pinions for Gear Ratio from 9.82:1 to 5.74:1.
• Aluminum uprights (3-degree toe-in)
• Aluminum motor mount
• Full Bearing Set

Hop-Up Parts Included:

• 53159 4mm Aluminum Flange Lock Nut (Blue)
• 54247 3x18mm Aluminum Turnbuckle Shaft (Blue) x2
• 54501 TT-02 Aluminum Propeller Shaft
• 53642 5mmAluminum Ball Connector (Blue)
• 54500 TT-02 High-Speed Gear Set (68T)
• 54502 TT-02 Aluminum Propeller Joint

Wide Variety of Option Parts are separately available.

We have packaged the radio control system, battery and charger together for an easy additional purchase.

• Starter Package Deal (Includes Slow Charger)
• Racing Package Deal (Includes Fast Charger)

ELECTRIC KITS REQUIRE:

• Radio: 2-Channel with servo(s)
• Electronic Speed Controller
• Battery: 6-cell flat with standard Tamiya connector
• Charger: AC/DC timed or peak for 6-cell battery
• Paint: Tamiya PS spray paints

Manufacturer: Tamiya
Model: 47326 R/C TT-02R Chassis Kit
Scale: 1/10
